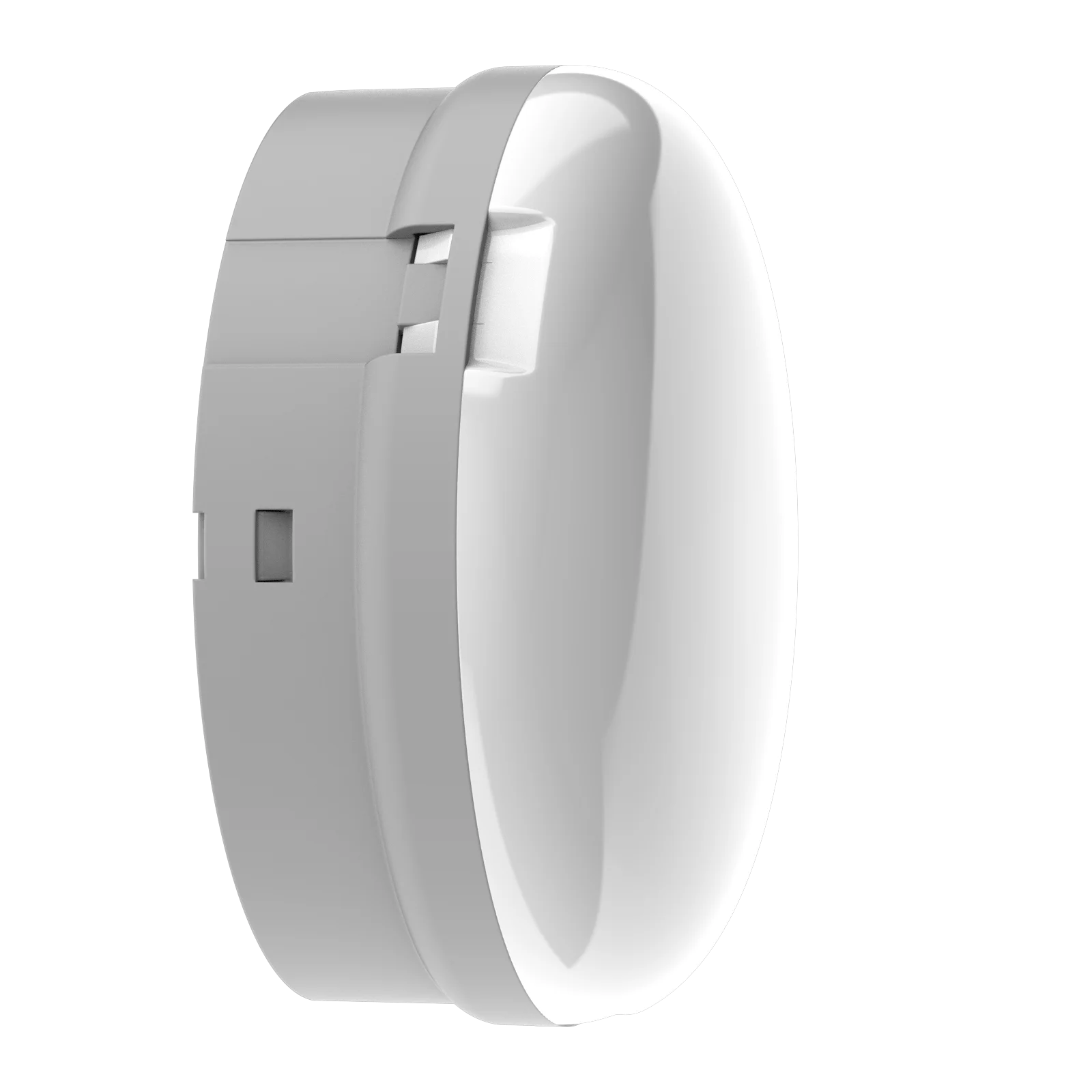

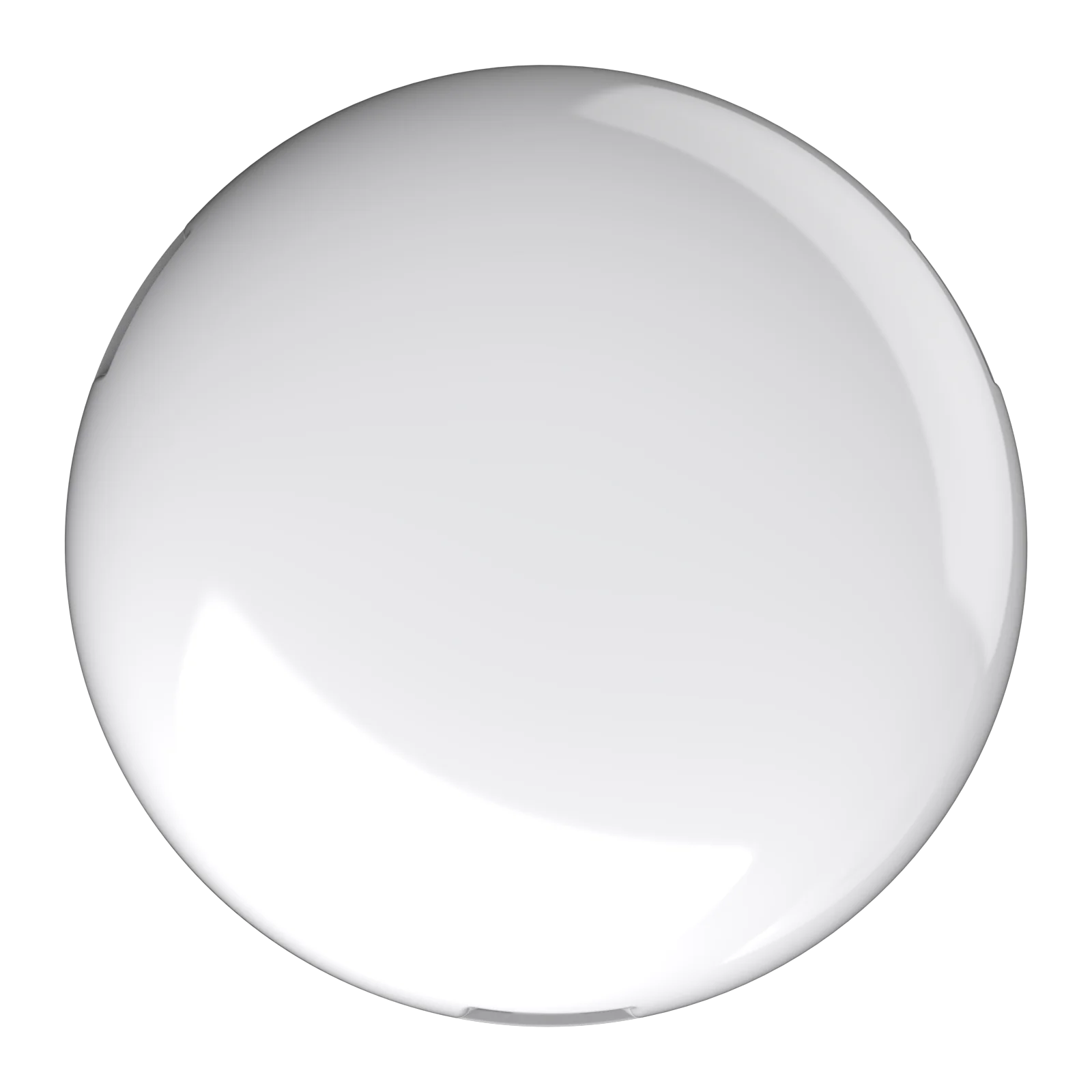

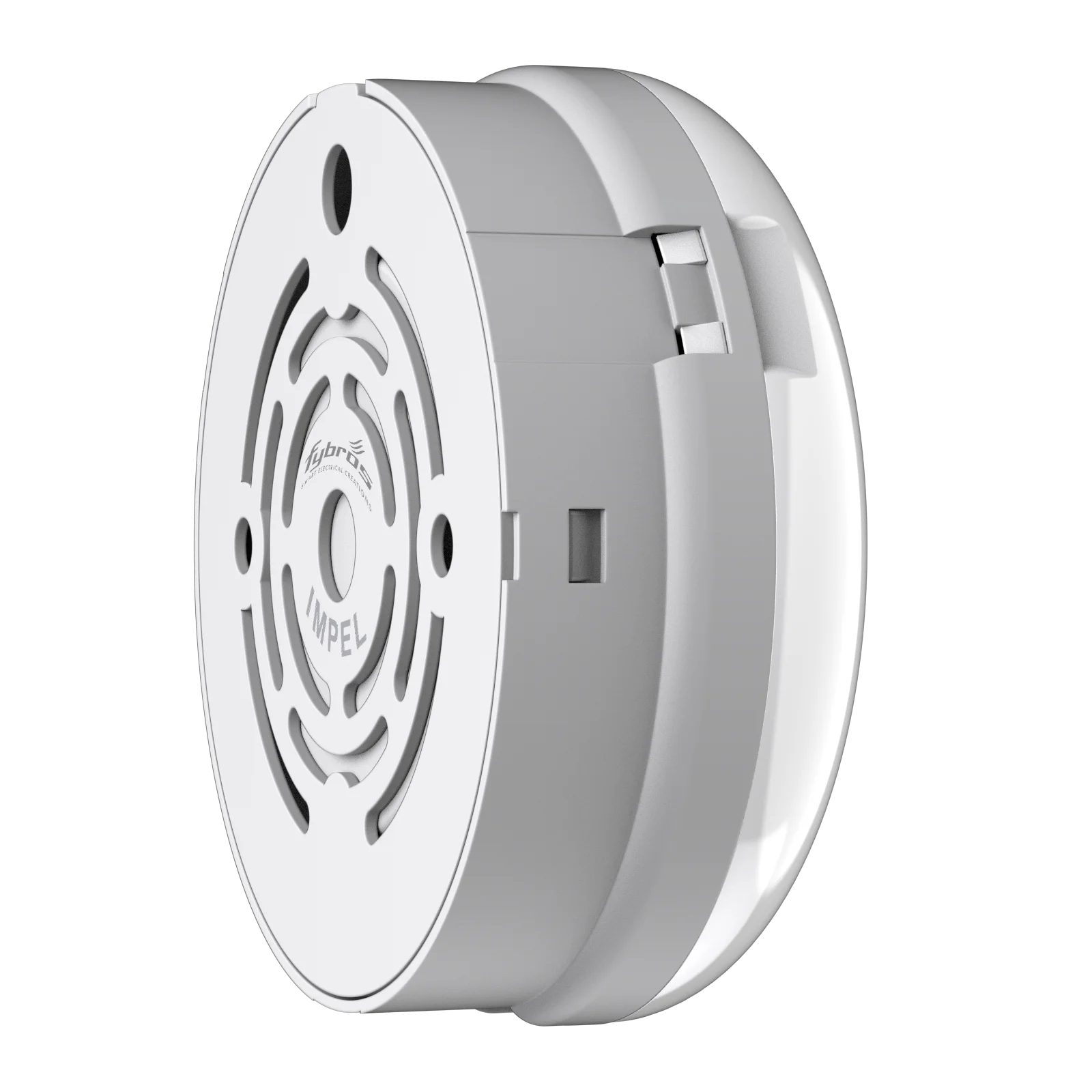

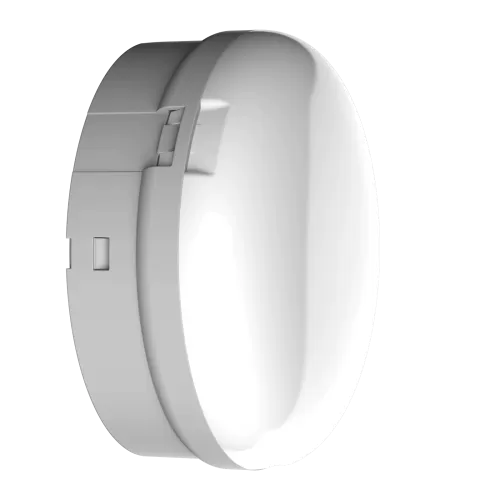

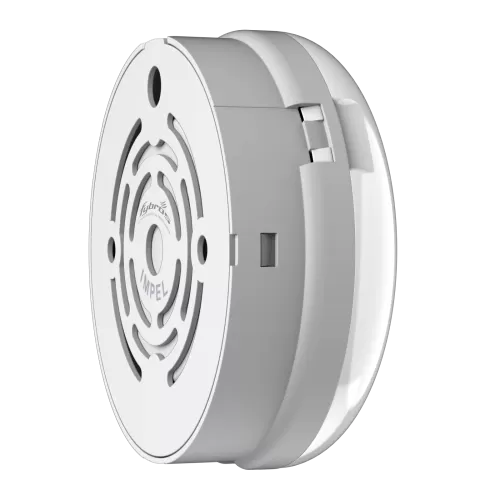

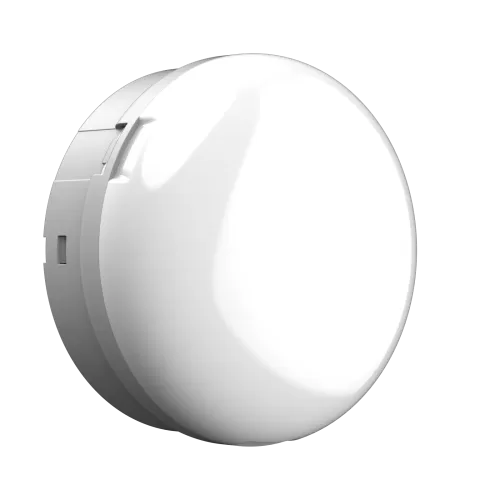

Impel Surface Panel Light

M.R.P. 440
Product Code FLS 5325
M.R.P. 440
Product Code FLS 5326
M.R.P. 440
Product Code FLS 5327
M.R.P. 640
Product Code FLS 5331
M.R.P. 640
Product Code FLS 5332
M.R.P. 640
Product Code FLS 5333
M.R.P. 440
Product Code FLS 5328
M.R.P. 440
Product Code FLS 5329
M.R.P. 440
Product Code FLS 5330
M.R.P. 640
Product Code FLS 5334
M.R.P. 640
Product Code FLS 5335
M.R.P. 640
Product Code FLS 5336

Size (mm) 80 x40

Size (mm) 80 x40

Size (mm) 80 x40

Size (mm) 135 x 40

Size (mm) 135 x 40

Size (mm) 135 x 40

Size (mm) 80 x40

Size (mm) 80 x40

Size (mm) 80 x40

Size (mm) 135 x 40

Size (mm) 135 x 40

Size (mm) 135 x 40

Technical Specification

Fixture Shape Round
Material Polycarbonate
Body colour White
Diffuser shape                                      Round
Diffuser transparency Transparence
Driver Independent
Mounting arrangement Ceiling light











Cut Size (mm)                                      N/A
Dimension (D x H) "8W-80 X 40
15W-135 X 40"











Colour Rendering Index (CRI) >80
Colour Temperature Cool White-6500K, Warm White-2800K, Natural White-4200K
Light Effect                                      Cool White, Warm White, Nature White
Lumen 100











IP rating IP20
High Voltage Protection Upto 440V
Mercury content                                      No mercury











Warranty                                      2 Year











Suitable for                                      Mall, Shops and offices, Restaurants, Hotel Guest Rooms
Mounting type Ceiling light











Wattage 8W, 15W
Rated input voltage 220-240V
Frequency 50/60 Hz
Operating temperature -10 °C to 45 °C
Power factor                                      > 0.9
